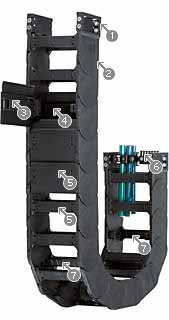

1.KMA mounting brackets2.Fixed or pivoting mounting brackets available3.R188: Lid can be pivoted and removed4.R188: Shelves can be removed5.Tube and chain can be combined6. Strain relief can be integrated7.140/141:Crossbars removable from both sides
Available inner widths Bi: 50 to 462mmAvailable bend radii R: 150 to 500mmPitch: 91mm/link = 11 links/m
DISCONTINUED MODEL For new constructions, we recommend the technically improved e-chain® Series R18840 from the igus® E4/light range.+25% more unsupported length, higher strength and tensile strength, same dimensions and connection dimensions Series R188 is available from stock in limited numbers. Product support and storage are limited as of 2012. For questions, please refer to your igus® contact person. Thank you for your understanding to the E4/light series R18840
* The required clearance height is HF = H + 50 mm (at 2 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.
A=moving end, B=fixed endPitch: 91mm per linkChain links per m: 11Travel: SChain length = S/2 + K
The unsupported length depends on fill weightX axis: unsupported length in m FLB/FLGY axis: fill weight in kg/mLower scale: travel S in mFLB = unsupported with permissible sagFLG = unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
2 mounting bracket variants
Modular interior separation
10 widths and 6 bend radii
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types
Separators can be fitted anywhere in the chain cross section. The standard separator part no. 401 offers secure standing ability through its wide base, even for large cables/hoses. For applications with many small cables, which should be respectively separated from each other by a separator, the separator with narrow base Part No. 483 can be used. The separators 401 and 483 can be used both on e-chains® as well as on energy tubes from the series listed above.

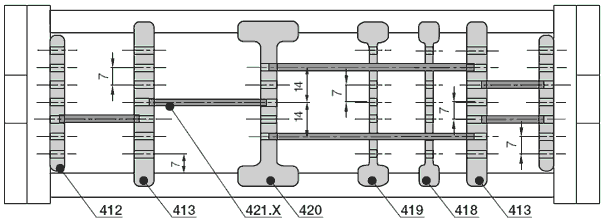

With the various elements of the interior separation, the e-chains® and energy tubes can be divided both vertically and horizontally. Side plates and shelves allow a flexible separation structure. Shelves of various widths can be arranged in steps of 7mm on 7 levels. You can find recommendations for assignment in the "Design" chapter. For installing the open height slot separators, the top and bottom slots cannot be used for shelves. Examples of interior separation: For a very finely divided solution, height slot separator Part No. 418 are used. However, these cannot be integrated into existing shelving without removingthe interior separation system The height slot separator Part No. 419, which is open on one side, can be retrofitted without removing the existing interior separation system. (Does not apply to shelves in the upper or lower-most notches)
KMA - pivoting
KMA - locking
"Super-aluminium", "Basic" guide trough
"Super-Alu" guide trough, "Heavy Duty"
Steel guide troughs
1. Trough side part, aluminium, 2m
2. Glide bar, plastic, 2m
3. Plastic glide strips*, side, 2m
4. Clamping shoe, aluminium
5. C-profile, galvanised steel
6. Screw M8 x 20
7. Sliding nut M8
8. "Basic" connector, plastic
10. Optional: noise dampening strip
*without glide strips upon request
"Super-aluminium" trough - the igus® standard for guide troughs
The "Super-aluminium" trough is a modular system of guide troughs for long travels (where e-chains® glide on each other). The basic "Super-aluminium" trough is available in simple, cost-effective "basic designs" and can be expanded for sophisticated plant construction. This universal usability makes it the recommended igus® standard for guide troughs.
1. Interface connector
2. Plastic glide bar
3. Clamping shoe
4. Glide strips
9. Heavy-duty bracket option, aluminium
11. Screw M8 x 25
1. Aluminium profiles
3. Heavy-duty bracket option
6. Silencer profiles

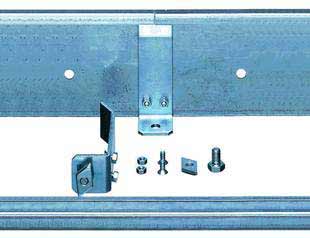

1. Guide trough (blue)2. Glide bar (black)3. Installation set (red)4. Individual attachment without C-profile5. Profile rail length
+ Easy assembly using installation sets+ two-part model – adjustable from chain width+ Very strong+ Cost-effective+ Large selection
Guide trough without glide bars, Part No. 94.30, guide trough with glide bars Part No. 94.31
Installation sets, Part No. 94.50. XX
