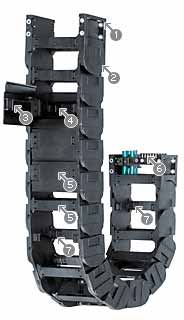

1.KMA mounting brackets 2.Fixed or pivoting mounting brackets available3. R88: Lid can be pivoted and removed.4. R88: Shelves can be removed5.Tube and chain can be combined6. Strain relief can be integrated into the mounting bracket7.40/41: Crossbars removable from both sides
Available inner widths Bi: 50 to 600mmAvailable bend radii R: 135 to 500mmPitch: 91mm/link = 11 links/m
DISCONTINUED MODEL For new designs, we recommend the improved e-chain® series H4.56 from the igus® E4.1 modular system.+25% more unsupported length, higher strength and tensile strength, same dimensions and connection dimensions Series 41 is available from stock in limited numbers. Product support and storage are limited as of 2012. For questions, please refer to your igus® contact person. Thank you for your understandingto the H4.56 series
* The required clearance height is HF = H + 50 mm (at 2 kg/m fill weight), which should be observed in all types of applications. Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.
A=moving end, B=fixed endPitch: 91mm per linkChain links per m: 11Travel: SChain length = S/2 + K
The unsupported length depends on fill weightX axis: unsupported length in m FLB/FLGY axis: fill weight in kg/mLower scale: travel S in mFLB = unsupported with permissible sagFLG = unsupported with straight upper run
Samples and catalog order
E-Chain® Expert call
Service life calculation
Ask the product expert
Designing with igus®
Modular internal separations
3 mounting bracket variants
Variable widths through extension links
42 widths and 10 bend radii
e-chain® opener tools for easy opening and closing of E4 series igus® e-chains®
Design specificationFurther information on "unsupported application"
Design specificationFurther information on "gliding application"
Other installation types
Separators can be arranged in any position in the chain cross-section. The standard separator part no. 401 offers secure standing ability with its wide base, even for large cables/hoses. For applications with many small cables, which should be respectively separated from each other by a separator; the separator with narrow base Part No. 483 can be used. The separators 401 and 483 can be used both on e-chains® as well as on energy tubes from the series listed above. Also available for the applications with e-chains® (not tubes): Locking separator part. no. 404 with increased holding force. This separator is used in applications with very high humidity, e.g. in compost plants or in applications with extreme loads. Opening thee-chain® is more difficult when using the locking separator. All separators can be moved and can be fixed in position (e.g. for side-mounted applications) by spacers (not for tubes). Note: The available inner height is reduced by 2 mm for each spacer, which can reach 4 mm with spacers attached on both sides. To prevent this, parts can also be installed from the outside onto the opening crossbar.
With the various elements of the interior separation, the e-chains® and energy tubes can be divided both vertically and horizontally. Side plates and shelves allow a flexible separation structure. Shelves of various widths can be arranged in steps of 7mm on 7 levels. You can find recommendations for assignment in the "Design" chapter. For installing the open height slot separators, the top and bottom slots cannot be used for shelves. Examples of interior separation: For a very finely divided solution, height slot separator Part No. 418 are used. However, these cannot be integrated into existing shelving without removingthe interior separation system The height slot separator Part No. 419, which is open on one side, can be retrofitted without removing the existing interior separation system. (Does not apply to shelves in the upper or lower-most notches)
KMA - pivoting
KMA - locking
Steel guide troughs
1. Guide trough (blue)2. Glide bar (black)3. Installation set (red)4. Individual attachment without C-profile5. Profile rail length
+ Easy assembly using installation sets+ two-part model – adjustable from chain width+ Very strong+ Cost-effective+ Large selection
Guide trough without glide bars, Part No. 94.30, guide trough with glide bars Part No. 94.31
Installation sets, Part No. 94.50. XX
