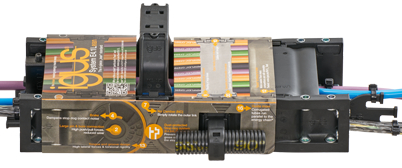

E4.1L - high dynamics, light and cost effective
"Allrounder" e-chains® and e-tubes for high dynamics. The E4.1L series has been developed to combine the advantages of the E2/000 and E4.1 in one series. The strength and stability of the E4.1 system combined with the easy accessibility of the E2/000 system. The E4.1L system is the ideal energy chain for mechanical engineering and applications of all kinds where there must be an optimum relationship between technical requirements and economic efficiency.
New, particularly cable-friendly interior separation program available.

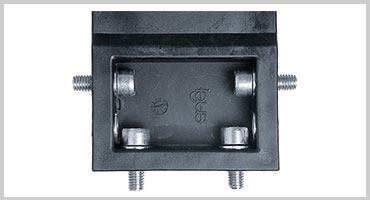

Pivoting and rigid KMA mounting brackets available.
KMA mounting brackets with circumferential fastening options.
You can find the right e-chain® quickly by entering concrete parameters and with the aid of a comparison table.
Joining, separating and opening of the e-chain® and e-tubes.
Applications in various industrial sectors and in the igus® test laboratory.
Series E4.31L
Internal height hi: 31 mm
Internal widths Bi: 40 - 300 mm
Bending radii R: 055 - 250 mm
Pitch: 46 mm
Series E4.38L
Inner height hi: 38 mm
Inner widths Bi: 50 - 400 mm
Bending radii R: 063 - 350 mm
Pitch: 56 mm
Series E4.48L
Inner height hi: 48 mm
Inner widths Bi: 50 - 400 mm
bending radii R: 075 - 350 mm
Pitch: 67 mm
Series E4.64L
Inner height hi: 64 mm
Inner widths Bi: 50 – 400 mm
Bend radii R: 100 – 400 mm
Pitch: 91 mm
Serie R4.31L
Internal height hi: 31 mm
Internal widths Bi: 50 - 300 mm
Bending radii R: 075 - 250 mm
Pitch: 46 mm
Serie R4.38L
Internal height hi: 38 mm
Internal widths Bi: 50 - 300 mm
Bending radii R: 100 - 350 mm
Pitch: 56 mm
Serie R4.48L
Inner height hi: 48 mm
Inner widths Bi: 50 - 300 mm
bending radii R: 100 - 350 mm
Pitch: 67 mm
New products
Additions to the product range and accessoriesGuide corrugated tubes in parallel
E4.1L TUB - Safe routing of corrugated tubes parallel to an e-chain®
... E4.1L ... reduce assembly time ...
Time saving new separators – "lean" assembly"
... E4.1L ... universal strain relief ...
Assembly in seconds. Reworked honeycomb strain relief CFU
... E4.1L ... extremely wide ... higher load ...
2,000 mm width and 50% more filling now also for E4.38L/R4.38L
Low weight and high strength

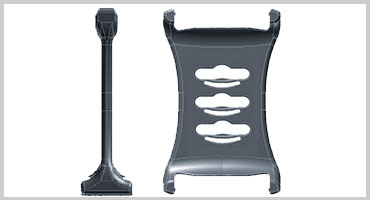

Ideal ratio of inner and outer dimensions with thinner outer links and optimised crossbar geometry
30% lighter and lower-priced than E4.1

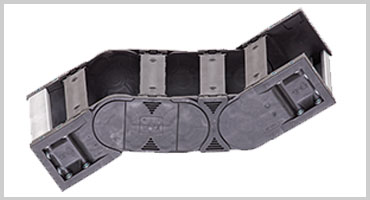

e-chains® and e-tubes openable along the inner and outer radius, from both sides
Very tightly fitting lids, virtually no gaps or openings
Openable along inner and outer radius
Inside completely accessible for easy filling
Cost-effective alternative for E4.1
for unsupported applications
If the strength of the E2/000 is insufficient, but an E4.1 is too big
41 dB(A) determined in the igus® laboratory, v = 1.8 m/s unsupported
ESD classification: Electrically conductive ESD versions upon request
High torsional rigidity
iF Design Award 2014 for R4.1L e-tubes
Installation videos
Connecting two E4.1L chain segments
Replacing E4.1L chain links
E4.1L extender crossbar
Extender crossbars E4.1L
