igus® solutions for the oil and gas industry
Moving energy supply systems that function under extreme conditions
Dirt, saltwater, vibrations, extreme temperatures, high levels of mechanical stress and the risk of explosion are the most frequently occurring problems that impair the performance of drilling equipment and other devices used for oil and gas extraction. In such surroundings, where downtimes are costly, the energy chains from igus® offer the performance characteristics needed to ensure smooth and continuous operation.
Your benefits:
Pre-harnessed energy chain systems (readychain®) with chainflex® cables in top drive systems
Suitable products for the oil and gas industry
e-chain® Series E4.112
- Robust and up to 70% lighter than steel
- Special interior separation system prevents parts from falling out
- Modular design
e-chain® Series E4.350
- Tried and tested for heavy loads up to 650 kg/m
- For example, for use in the case of cantilever skids
- Up to 50% lighter than steel chains
Offshore chain (OSC)
- Modular design guarantees that cables can be reached
- Tensile forces up to 187 kN possible
- Cable protection in extremely adverse conditions
Harnessed cables
- Ready-to-connect cables with industry-specific connectors
- Harnessing of EX connectors
- Tested according to corresponding industry standards
Ready-to-connect energy chain systems
- 95% less harnessing time
- Reduce assembly time
- Plug & play solutions, e.g. for top drives
Turnkey complete systems
- Rotation systems with up to 900° rotation
- Easy integration into the customer's structure
- Extended system guarantee possible
Application examples of our customers

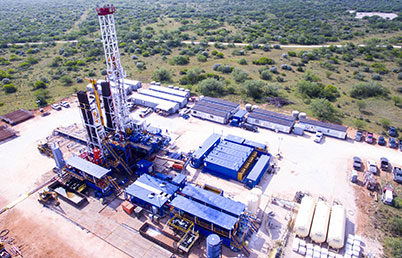

Installation times and maintenance work reduced on fully automated land rig
Complete systems from a single source for all moving machines such as pipe handling devices and top drives on this full automated land rig

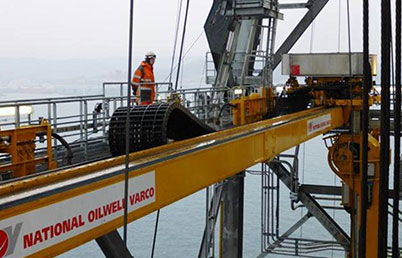

Successful for many years in offshore use
Even under extremely high loads and in the rough conditions on oil rigs, corrosion-free, lightweight energy chains of the E4.1 series are able to demonstrate their strengths.

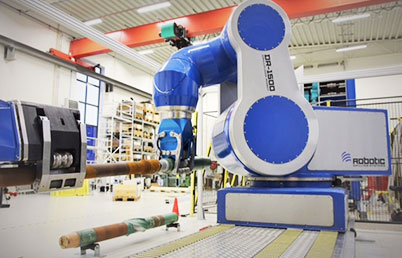

Cost-effective complete systems shorten and facilitate installation
Here, among other things, several RBR systems are used with energy chains in the joints of the robot, whereby the energy chains are responsible for the supply of energy, data and media. Technical development, which was very complex due to the extremely limited installation space, was carried out by theigus® project engineering team.

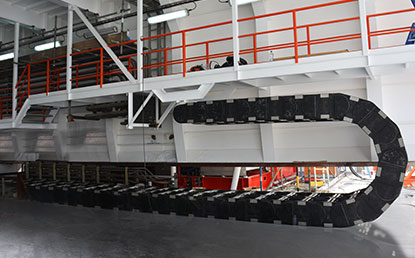

Weight-saving and cost-effective
In the case of cantilever skids, heavy-duty applications are a basic prerequisite and can be implemented with the E4.350 series in a cost-effective and weight-saving manner.
Tests: FAT (Factory Acceptance Test) and function test
FAT: E4.350 energy chain as hook solution for installations in the oil and gas industry
Function test: igus® RBR rotation systems in bucket-wheel excavators
Your expert on the oil and gas industry
If you have any questions or need more information, we will be happy to help you at any time!
Industry manager:Tim Schneebeck
Tel.: +49 2203 9649 7245
Services
Engineering service
From the first sketch to installation and on-site commissioning

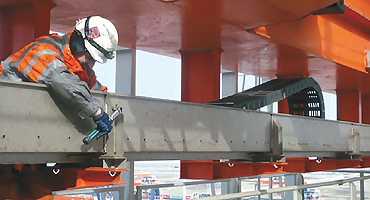

Assembly service
Installation of energy chains with all components, with guarantee

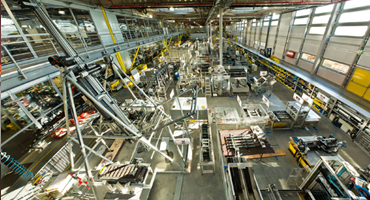

Quality
Product quality is regularly checked and certified
