drylin® NT telescopic guides

The drylin® NT product group consists of telescopic rails with continuous extension lengths of up to 600mm. Snap function is also available as an option. igus® offers a material combination of aluminium and plastic and guarantees quiet operation. The telescopic rails is lightweight and meet high hygiene requirements.






Free sample box

Lubrication-free linear systems - for your home office or workplace





Contact igus® Support

Michael Hornung, linear technology expert





Download white paper free of charge

When to use plastic linear bearings and linear guides with recirculating ball systems?

Expert system linear guides

Expert system linear guides

System selection & service life calculation of linear guides.
FAQs

FAQs

Frequently asked questions about igus® drylin®
List
Tile

Number of products: 5

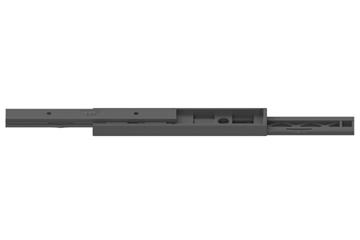

drylin® NTP-27 polymer telescopic guide
drylin® NTP-27 polymer telescopic guide
  • Complete telescopic guide made of iglidur polymer material
  • 3-piece structure made of igus® high-performance polymers
  • Extension length 150mm or 125mm
  • Quiet operation with no rolling elements
  • lubrication-free due to igus® high-performance polymers
  • Corrosion-free
  • Low clearance due to spring preload
  • Extension length 150mm available in 5 colours (anthracite, light grey, white, orange, blue)
231.58 NOK/Pc.
6 items, thereof ready for shipping:
5 in 24-48 hours
1 in 10 working days
To the product page

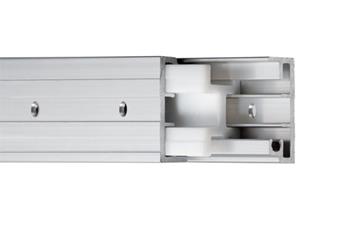

drylin® NT-35 telescopic rails
drylin® NT-35 telescopic rails
  • Robust polymer/aluminium version
  • Lightweight
  • Cost-effective
  • Corrosion-resistant
  • Individual millimetre precise extension lengths of up to 600mm are available as standard and without surcharge, please contact us for this  here.
500.59 NOK/Pc.
6 items, thereof ready for shipping:
3 in 24-48 hours
3 in 10 working days
To the product page

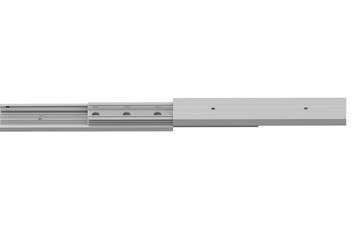

drylin® NT-60 telescopic rails
drylin® NT-60 telescopic rails
  • Robust polymer/aluminium version
  • Lightweight
  • Cost-effective
  • Corrosion-free
  • Individual millimetre precise extension lengths of up to 2000mm are available as standard and without surcharge, please contact us  here.
1,228.64 NOK/Pc.
10 items, thereof ready for shipping:
3 in 24-48 hours
5 in 10 working days
To the product page

Telescopic rail, preloaded | drylin® NTV
Telescopic rail, preloaded | drylin® NTV
  • Consistent telescopic rail due to spring pretensioning mechanism
  • Constant drive forces with various preload options
  • With 27mm width very narrow type for 27mm groove
Special lengths available upon request!
1,274.57 NOK/Pc.
8 items, thereof ready for shipping:
8 in 10 working days
To the product page

drylin® NT telescopic rails Heavy Duty
drylin® NT telescopic rails Heavy Duty
  • Telescopic extension up to 1,000mm in the application area up to max. +80°C
  • Telescopic rail can be ordered with infinite adjustment from 140 - 1,000mm
  • Selected coating with iglidur® IC-05, after test: linear short stroke, lasts up to four times longer than iglidur® IC-01
Upon request
To the product page
