Linear actuators

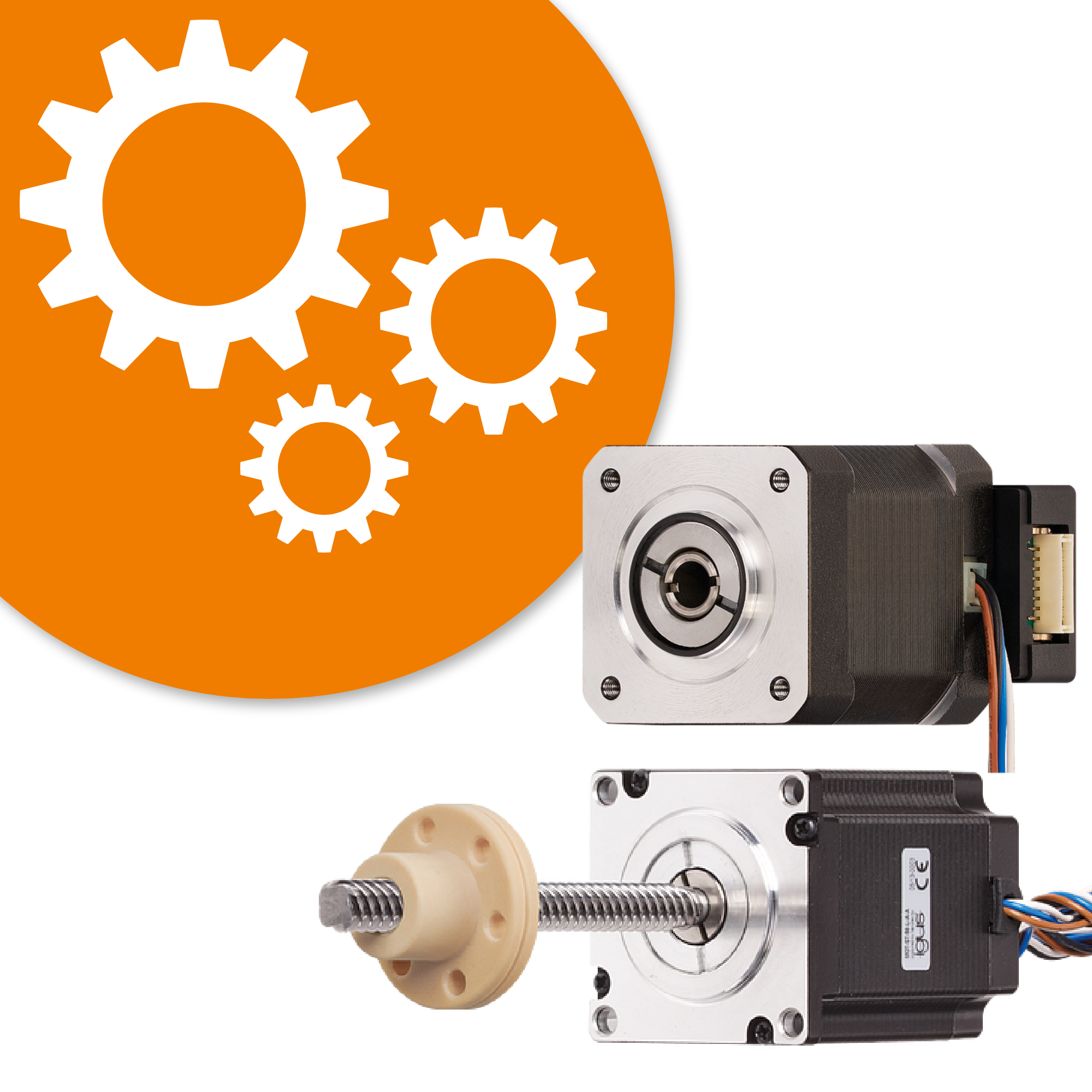

Linear actuators are a marriage of stepper motor with hollow shaft, lead screw and nut. The advantage of this design is that it can absorb high axial forces that conventional stepper motors cannot keep up with. A large product portfolio can be used for lead screws, which include, for e.g. high helix thread, trapezoidal and metric lead screws, as well as various metals. In addition, the lead screw length and the lead screw nut (flange lead screw nut) available as standard can be configured. NEMA 11, 17 and 23 - flange sizes 28mm, 42mm and 56mm are available in the online shop. Optionally, an encoder can be added to any installation size.

Categories
Filters
Size
Electrical information
Design
Number of products 6

drylin® E linear actuator, stranded wires with JST connector, NEMA11

drylin® E linear actuator, stranded wires with JST connector, NEMA11
  • Installation size Motor: NEMA11 / Flange dimension 28mm
  • Protection class: IP40
  • Holding torque: 0.12Nm
  • Rated current: 1.00A
  • Linear feed/1.8° step: 0.0254mm
  • Force: 50N
  • Motor connection: stranded wires with JST connector
  • Efficient dryspin® high helix thread: DST 6.35x5.08
  • Lubrication-free dryspin® lead screw nut: 15mm
NOK 2,325.51/Pc.Cost-effective price break available onlineNOK 2,160.26/Pc. 10 Pc.

1 variant(s), of which:

igus-icon-lieferzeit-dot
1 ready for shipping in 24 - 48 hours

drylin® E linear actuator, stranded wires with JST connector, NEMA17

drylin® E linear actuator, stranded wires with JST connector, NEMA17
  • Installation size Motor: NEMA11/Flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Linear feed/1.8° step: 0.075mm
  • Force: 100N
  • Motor connection: stranded wires with JST connector
  • Efficient dryspin® high helix thread: DST 8x15
  • Lubrication-free dryspin® lead screw nut: 20mm
NOK 2,544.95/Pc.Cost-effective price break available onlineNOK 2,360.89/Pc. 10 Pc.

1 variant(s), of which:

igus-icon-lieferzeit-dot
1 ready for shipping in 24 - 48 hours

drylin® E linear actuator, stranded wires with JST connector and encoder, NEMA11

drylin® E linear actuator, stranded wires with JST connector and encoder, NEMA11
  • Installation size Motor: NEMA11/Flange dimension 28mm
  • Protection class: IP40
  • Holding torque: 0.12Nm
  • Rated current: 1.00A
  • Linear feed/1.8° step: 0.0254mm
  • Force: 50N
  • Motor connections: stranded wires with JST connector, encoder with JST connector
  • Efficient dryspin® high helix thread: DST 6,35x5,08
  • Lubrication-free dryspin® lead screw nut: 15mm
NOK 3,984.30/Pc.Cost-effective price break available onlineNOK 3,736.03/Pc. 10 Pc.

1 variant(s), of which:

igus-icon-lieferzeit-dot
1 ready for shipping in 24 - 48 hours

drylin® E linear actuator, stranded wires with JST connector, NEMA23

drylin® E linear actuator, stranded wires with JST connector, NEMA23
  • Installation size Motor: NEMA23/Flange dimension 56mm
  • Protection class: IP40
  • Holding torque: 2.00Nm
  • Rated current: 4.20A
  • Linear feed/1.8° step: 0.06mm
  • Force: 500N
  • Motor connection: stranded wires with JST connector
  • Efficient dryspin® high helix thread: DST 10x12
  • Lubrication-free dryspin® lead screw nut: 25mm
NOK 4,051.59/Pc.Cost-effective price break available onlineNOK 3,788.58/Pc. 10 Pc.

1 variant(s), of which:

igus-icon-lieferzeit-dot
1 ready for shipping in 24 - 48 hours

drylin® E linear actuator, stranded wires with JST connector and encoder, NEMA17

drylin® E linear actuator, stranded wires with JST connector and encoder, NEMA17
  • Installation size Motor: NEMA11/Flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Linear feed/1.8° step: 0.075mm
  • Force: 100N
  • Motor connections: stranded wires with JST connector, encoder with JST connector
  • Efficient dryspin® high helix thread: DST 8x15
  • Lubrication-free dryspin® lead screw nut: 20mm
NOK 4,299.86/Pc.Cost-effective price break available onlineNOK 4,027.86/Pc. 10 Pc.

1 variant(s), of which:

igus-icon-lieferzeit-dot
1 ready for shipping in 24 - 48 hours

drylin® E linear actuator, stranded wires with JST connector and encoder, NEMA23

drylin® E linear actuator, stranded wires with JST connector and encoder, NEMA23
  • Installation size Motor: NEMA23/Flange dimension 56mm
  • Protection class: IP40
  • Holding torque: 2.00Nm
  • Rated current: 4.20A
  • Linear feed/1.8° step: 0.06mm
  • Force: 500N
  • Motor connections: stranded wires with JST connector, encoder with JST connector
  • Efficient dryspin® high helix thread: DST 10x12
  • Lubrication-free dryspin® lead screw nut: 25mm
NOK 5,618.15/Pc.Cost-effective price break available onlineNOK 5,276.82/Pc. 10 Pc.

1 variant(s), of which:

igus-icon-lieferzeit-dot
1 ready for shipping in 24 - 48 hours
