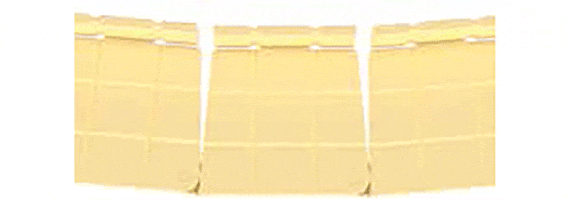

Universal gliding element, made from the proven iglidur® J

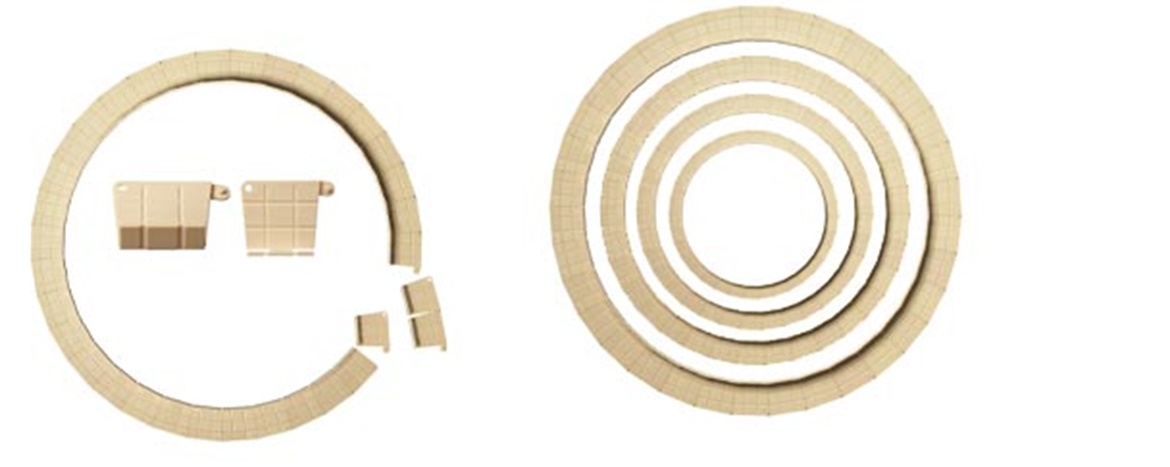

Customize your own slewing ring tables starting at 500 mm diameters and larger
Lubricant free
Maintenance-free
wear-resistant
Rugged
Resistant to corrosion
General features | |
---|---|
Density | 1,49 g/cm3 |
Colour | yellow |
Max. moisture absorption at 23 °C and 50 %r.h. | 0,3 Wt.-% |
Max. water absorption | 1,3 Wt.-% |
Mechanical properties | |
---|---|
Max. permissible static surface pressure (+20 °C) | 35 MPa |
Shore D hardness | 74 |
Physical and thermal properties | |
---|---|
Max. long term application temperature | 90°C |
Max. short term application temperature | 120°C |
Lower application temperature | –50° |
Electrical properties | |
---|---|
Surface resistance | >1012 Ω |
Ordering number | ||
---|---|---|
JRS-500S/45S | 41.80 NOK |
