drylin® E Linear modules with lead screw

drylin linear axes with spindles are suitable for a wide range of adjustment tasks. They are a popular choice when it comes to ensuring precise positioning. In our online store for spindle axes, you will find a wide variety of product designs. Buy linear modules of various sizes with trapezoidal or steep thread spindles here. We offer spindle linear units that can be set in motion both manually (e.g. with a handwheel) and electrically with an electric motor. Selected models in standard lengths are available from stock.

Number of products: 42

New

drylin® SLN-27 econ linear module

  • Entry-level model with basic slide made of igus® polymer
  • For the smallest installation spaces
  • Stroke length 40 mm
  • Pitch 6.35 x 25.4 mm
  • Handwheel included, ⌀ 22 mm
1,035.85 NOK/Pc.
1 items, thereof ready for shipping:
1 in 4 weeks
To the product page

drylin SLWC-0620 miniature linear module with lead screw stepper motor

Upon request
2 items, thereof ready for shipping:
2 in 10 working days
To the product page

drylin SLW-0620 miniature linear module

Upon request
2 items, thereof ready for shipping:
2 in 10 working days
To the product page
New

drylin SLWC-BB-0620-FL-ES miniature linear module with lead screw stepper motor in stainless steel

  • Linear module with motor for small installation spaces
  • Dimensions of 22 x 32 mm
  • Made of robust stainless steel
  • FDA- and EU10/2011-compliant
  • Stroke length up to 250 mm

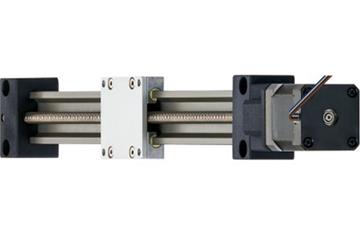

drylin® SAW-1080 linear module with stepper motor

  • With trapezoidal thread TR12x3
  • NEMA24 stepper motor
  • Carriage length: 100mm
  • Stroke length: 500mm
Configure individual linear module!
  • Thread type: Trapezoidal threads
14,270.16 NOK/Pc.
1 items, thereof ready for shipping:
1 in 24-48 hours
To the product page

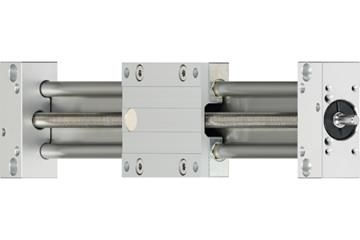

drylin® SLW-1040 linear module

  • With trapezoidal lead screw TR10x2
  • Lead screws with ball bearings
  • Carriage length: 100mm
  • Stroke lengths in 250 and 500 mm
Configure individual linear module!
  • Thread type: Trapezoidal threads
3,747.62 NOK/Pc.
2 items, thereof ready for shipping:
2 in 4 weeks
To the product page

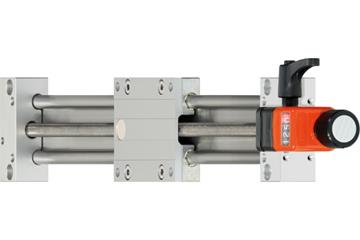

drylin® SLW-1040 linear module manual accessories

  • With trapeziodal lead screw TR10x2
  • With manual clamp and position indicator
  • Ball bearing lead screw support
  • Carriage length: 100mm
Configure individual linear module!
  • Thread type: Trapezoidal threads
4,898.99 NOK/Pc.
2 items, thereof ready for shipping:
2 in 4 weeks
To the product page

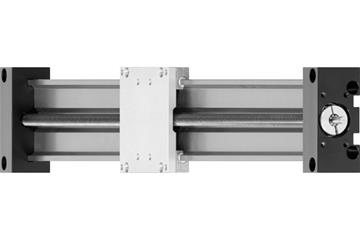

drylin® SAW-0660 linear module with high helix thread

  • Stainless steel high helix thread and machined end
  • Hard anodised aluminium profile (angular)
  • Carriage length: 100mm
  • Stroke lengths: 100mm or 500mm
Configure individual linear module!
  • Thread type: High helix threads
4,746.75 NOK/Pc.
2 items, thereof ready for shipping:
1 in 4 weeks
To the product page

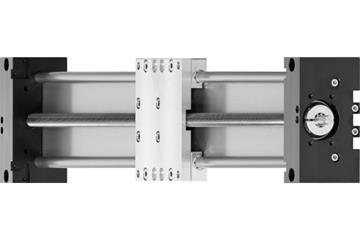

drylin® SAW-1080 linear module with high helix thread

  • With high helix thread and machined end
  • Hard anodised aluminium profile (angular)
  • Carriage length: 100mm
  • Stroke lengths: 250 mm or 500mm
Configure individual linear module!
  • Thread type: High helix threads
6,156.90 NOK/Pc.
2 items, thereof ready for shipping:
1 in 24-48 hours
1 in 4 weeks
To the product page

drylin® SHT-12 linear module with trapezoidal thread

  • Trapeziodal lead screw
  • Lead screw material: stainless steel
  • Lead screw end machined 6h9x17 mm
  • Stroke 250 mm or 500 mm
Configure drylin SHT linear modules individually!
    • Thread type: Trapezoidal threads
    4,707.27 NOK/Pc.
    2 items, thereof ready for shipping:
    2 in 4 weeks
    To the product page

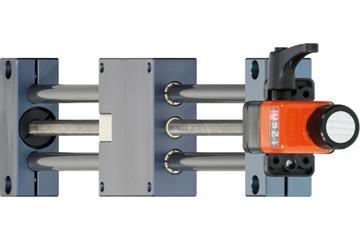

    drylin® SHT-12 linear module with position indicator

    • with plain bearing
    • Lead screw material: stainless steel
    • With position indicator and lead screw clamp
    • Stroke lengths: 250mm or 500mm
    Configure drylin SHT linear modules individually!
    • Thread type: Trapezoidal threads
    4,914.34 NOK/Pc.
    2 items, thereof ready for shipping:
    2 in 4 weeks
    To the product page

    drylin® SAW-0630 linear module with motor

    • With trapezoidal thread TR8x1.5
    • NEMA17 stepper motor with JST connector
    • Carriage length: 60mm
    • Stroke length: 250 mm
    Configure individual linear module!
    • Thread type: Trapezoidal threads
    8,454.64 NOK/Pc.
    1 items, thereof ready for shipping:
    1 in 24-48 hours
    To the product page

    drylin® SAW-1040 linear module with stepper motor

    • Trapeziodal lead screw TR10x2
    • NEMA23 stepper motor
    • Carriage length: 69mm
    • Stroke length: 500mm
    Configure individual linear module!
    • Thread type: Trapezoidal threads
    10,922.07 NOK/Pc.
    1 items, thereof ready for shipping:
    1 in 24-48 hours
    To the product page

    drylin® QLA | Telescopic actuator | Electric; NEMA17, lead screw motor

    Product information
    • Manual or electric adjustment with telescopic guide
    • Drive: NEMA17 lead screw motor with or without encoder
    • Max. extension length: 300mm
    • Max. compressive strength 100N
    6,543.00 NOK/Pc.
    4 items, thereof ready for shipping:
    4 in 5 working days
    To the product page

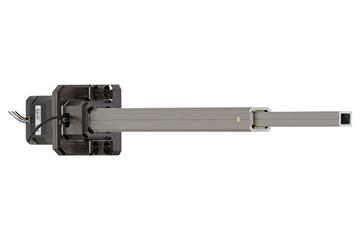

    drylin® QLA | Telescopic actuator | Electric; NEMA17, lead screw motor with encoder

    Product information
    • Manual or electric adjustment with telescopic guide
    • Drive: NEMA17 lead screw motor with or without encoder
    • Max. extension length: 300mm
    • Max. compressive strength 100N
    7,722.14 NOK/Pc.
    3 items, thereof ready for shipping:
    1 in 5 working days
    To the product page
