AX e-chain® Series - Special chain for fine dust applications
The 4240AX was developed for applications in which fine dust makes the use of a conventional e-chain® difficult. With conventional stop systems, very fine dust can accumulate on the stop-dog and cause the radius of the e-chain® to increase over a longer period of time. This is not the case with the 4040AX and 4240AX thanks to the external stop dogs.

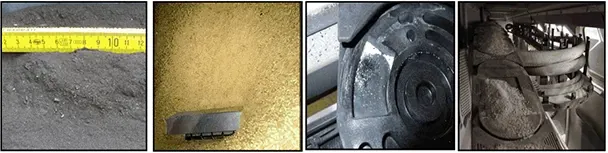

Dust of any kind can settle in the stop pocket and cause failures.
Advantages of AX chains:
External stop-dog
No accumulation of (wood) dust on the stops
No "setting up" of the e-chain®
Optimised interior space
Possible areas of application:
Woodworking industry
Coal-fired power stations
Mines
In applications with very fine dust/particles
AX chain link with external stop-dog system
The external stop-dog prevents dust from collecting in the stop pockets and is pushed straight back out of the chain.
Technical data:
Material: igumid® G
Temperature: -40°C to +120°C
Flammability class: UL94-HB
series
hi
Bi
Ba
ha
R
4040AX
56
50-600
84-634
84
150
[Wakoadd artnr="4040AX.Bi.150.0" text="Anfragen"]
4240AX
62
50-400
86-436
84
135
[Wakoadd artnr="4240AX.Bi.135.0" text="Anfragen"]
4240AX
62
50-400
86-436
84
150
[Wakoadd artnr="4240AX.Bi.150.0" text="Anfragen"]
4240AX
62
50-400
86-436
84
200
[Wakoadd artnr="4240AX.Bi.200.0" text="Anfragen"]
5050AX
80
50-600
100-650
108
150
[Wakoadd artnr="5050AX.Bi.150.0" text="Anfragen"]
5050AX
80
50-600
100-650
108
200
[Wakoadd artnr="5050AX.Bi.200.0" text="Anfragen"]
5050AX
80
50-600
100-650
108
250
[Wakoadd artnr="5050AX.Bi.250.0" text="Anfragen"]
5050AX
80
50-600
100-650
108
300
[Wakoadd artnr="5050AX.Bi.300.0" text="Anfragen"]
5050HDAX
80
50-600
104-654
108
250
[Wakoadd artnr="5050HDAX.Bi.250.0" text="Anfragen"]
5050HDAX
80
50-600
104-654
108
300
[Wakoadd artnr="5050HDAX.Bi.300.0" text="Anfragen"]
5050HDAX
80
50-600
104-654
108
350
[Wakoadd artnr="5050HDAX.Bi.350.0" text="Anfragen"]
5050HDAX
80
50-600
104-654
108
400
[Wakoadd artnr="5050HDAX.Bi.400.0" text="Anfragen"]
5050RHDAX
80
50-600
104-654
108
250
[Wakoadd artnr="5050RHDAX.Bi.250.0" text="Anfragen"]
5050RHDAX
80
50-600
104-654
108
300
[Wakoadd artnr="5050RHDAX.Bi.300.0" text="Anfragen"]
