twisterband - rotary movements in a very small space

Compact, modular, cost-effective, twistable up to 7,000°*

Rotary movements in a very small space - 20 times round its own axis. With the very compact igus twisterband, rotations can be achieved cost-effectively with low wear and very little maintenance, even in confined spaces, whereby energy, data and media can still be supplied reliably.

  • 7,000°* and more horizontal rotary movement and up to 3,000° in the vertical installation position°* and more horizontal rotary movement and up to 3,000° in the vertical installation position
  • Rotary speeds up to 180°/s possible
  • Compact, modular and light
  • Strips can be shortened as required
  • Minimum installation spaces, fits tightly around the rotary axis
  • Can be used reliably in various installation positions (horizontal, vertical, upside down)
  • Cost-effective
  • Easy filling
  • Ideal in combination with chainflex cables for rotary movements in very limited installation spaces
  • Five sizes available
Go to CAD configurator

Size overview

Twisterband sizes and cross-sections with dimensions for different TB models.
Twisterband sizes and cross-sections with dimensions for different TB models.

Calculation: number of strips depends on angle of rotation

(Always round up the number of strips)
TB12: XX ≈ Angle of rotation/360 + 2

  • Example: XX ≈ 1200°/360 + 2
  • Result: XX ≈ 6 strips

TB20: XX ≈ Angle of rotation/340 + 2

  • Example: XX ≈ 1200°/340 + 2
  • Result: XX ≈ 6 strips

TB29: XX ≈ Angle of rotation/180 + 2

  • Example: XX ≈ 720°/180 + 2
  • Result: XX ≈ 6 strips

TB30: XX ≈ Angle of rotation/180 + 2

  • Example: XX ≈ 1200°/180 + 6
  • Result: XX ≈ 13 strips

Data sheet

Cleanroom-capable and cost-optimised for chip manufacturing, battery production or display manufacturing

To the data sheet

Assembly instructions

You can find the assembly instructions for twisterband here.

To the assembly instructions
Twisterband cable guide for a rotating machine.

Application examples

twisterband in very diverse areas of industry

To the application example
Test rig with e-chains, and a worker checks components in the test lab.

Test laboratory

Take a look at our test laboratory for energy supply systems.

To the test laboratory

Special properties of the twisterband

Twisterband cable guidance system with curved links in a spiral shape.

Film hinge: easy access and fast filling with cables and hoses (TB20.44.18, TB30)

Twisterband with 360° and 3000° rotational capability shown.

As a rule of thumb, the maximum rotation angle is: for each 180° hinge = 360° more rotation

Twisterband cable protection with two connected chain bundles and an orange separator.

A central shaft must be installed for horizontal orientation angles of rotation above 1,500°

Circular cable management module with segmented flaps.

igus twisterband: extremely small installation spaces, fits very closely around the rotary axis

Twisterband cable carrier in spiral form on a white background.

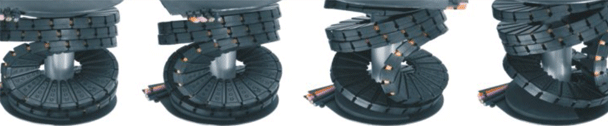

Compact, modular and cost-effective - Horizontal: 7,000°* and more feasible, vertical up to 3,000° rotary movement in the smallest of spaces

Twisterband cable carrier with an arrow showing the direction of movement.

Can be used in different installation positions: here, horizontal 7,000°* and more rotary movement in extremely small space. Limited length compensation possible

*Rotary movements up to 3,600° can be ordered from stock. Above 3,600°, please contact your igus representative.
